TECHNICAL DATA
| Locomotive Numbers | 1720 - 1775 |
| Type | Diesel-Electric |
| Introduced | 1966 |
| Number in class | 56; 53 in service |
| Manufacturer | Clyde Engineering / Comeng, Rocklea |
| Gauge | Narrow Gauge (1,067mm or 3' 6") |
| Axles | O°-O°-O°
O°-O°-O° Co-Co |
| Length | 13.4m |
| Mass | 62t |
| Engine | EMD 8-645E |
| Generator | EMD D25 |
| Traction Motors | EMD CD36 |
| Power | 745 kW / 1000 HP |
| Tractive Effort | 176 / 149 kN |
| Speed | 100km/h (62.5mph) |
CLASS INFORMATION
| Locomotive | Serial No. | In Service | Withdrawn | Scrapped | Comments |
| 1720 | 66-502 | 10/1966 | |||

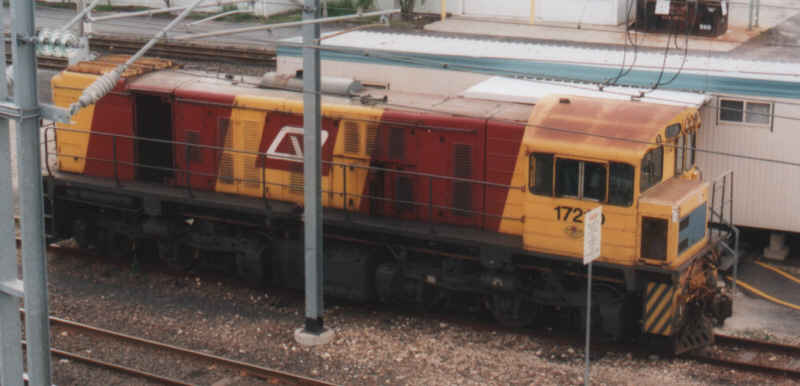

| 1721 | 66-503 | 10/1966 | |||
| 1722 | 66-504 | 11/1966 | |||

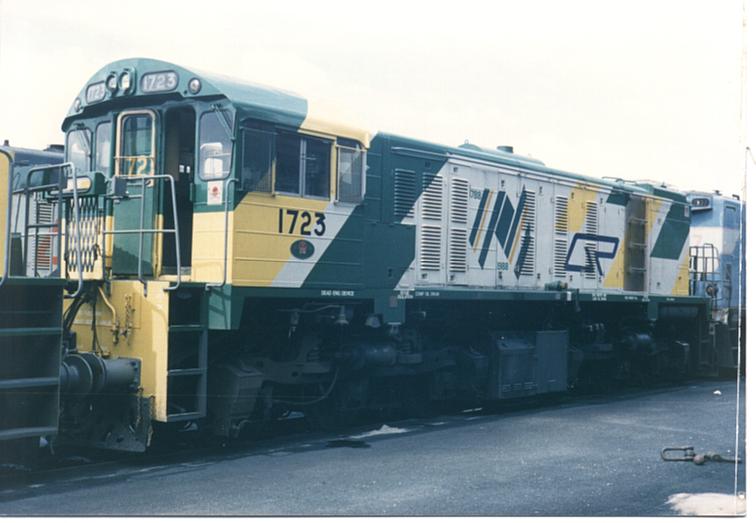

| 1723 | 66-505 | 11/1966 | |||
| 1724 | 66-506 | 11/1966 | |||
| 1725 | 66-507 | 12/1966 | |||

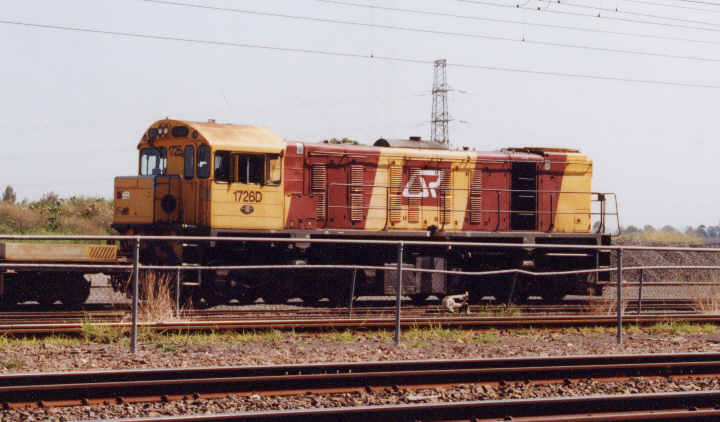

| 1726 | 66-508 | 12/1966 | 1/1999 | ||
| 1727 | 66-509 | 12/1966 | |||
| 1728 | 67-510 | 1/1967 | |||
| 1729 | 67-511 | 1/1967 | |||
| 1730 | 67-512 | 1/1967 | |||
| 1731 | 67-513 | 2/1967 | |||
| 1732 | 67-514 | 2/1967 | |||
| 1733 | 67-515 | 3/1967 | |||
| 1734 | 67-516 | 3/1967 | |||
| 1735 | 67-517 | 3/1967 | |||
| 1736 | 67-518 | 4/1967 | |||
| 1737 | 67-519 | 4/1967 | |||
| 1738 | 67-520 | 5/1967 | |||
| 1739 | 67-521 | 5/1967 | |||
| 1740 | 67-522 | 5/1967 | |||
| 1741 | 67-523 | 6/1967 | |||
| 1742 | 67-524 | 6/1967 | |||
| 1743 | 67-525 | 6/1967 | |||
| 1744 | 67-558 | 9/1967 | |||
| 1745 | 67-559 | 9/1967 | |||
| 1746 | 67-560 | 11/1967 | |||
| 1747 | 67-561 | 11/1967 | |||
| 1748 | 68-562 | 12/1967 | |||
| 1749 | 68-563 | 1/1968 | |||
| 1750 | 68-564 | 2/1968 | |||
| 1751 | 68-565 | 2/1968 | |||
| 1752 | 68-566 | 3/1968 | |||
| 1753 | 68-567 | 3/1968 | |||
| 1754 | 68-634 | 8/1968 | |||
| 1755 | 68-635 | 8/1968 | |||
| 1756 | 68-636 | 8/1968 | |||
| 1757 | 68-637 | 9/1968 | |||
| 1758 | 68-638 | 9/1968 | |||
| 1759 | 68-639 | 9/1968 | |||
| 1760 | 68-640 | 10/1968 | |||
| 1761 | 68-641 | 10/1968 | |||
| 1762 | 68-642 | 10/1968 | |||
| 1763 | 68-643 | 11/1968 | |||
| 1764 | 68-644 | 12/1968 | |||
| 1765 | 68-645 | 12/1968 | 6/1997 | ||

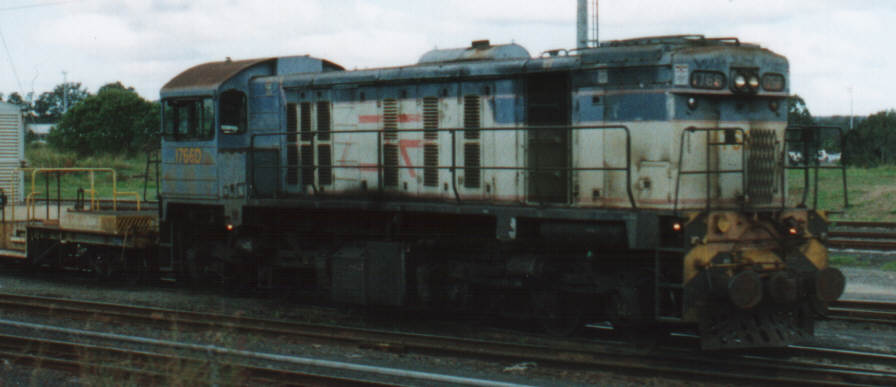

| 1766 | 69-683 | 11/1968 | |||
| 1767 | 69-684 | 12/1968 | 6/1999 | ||

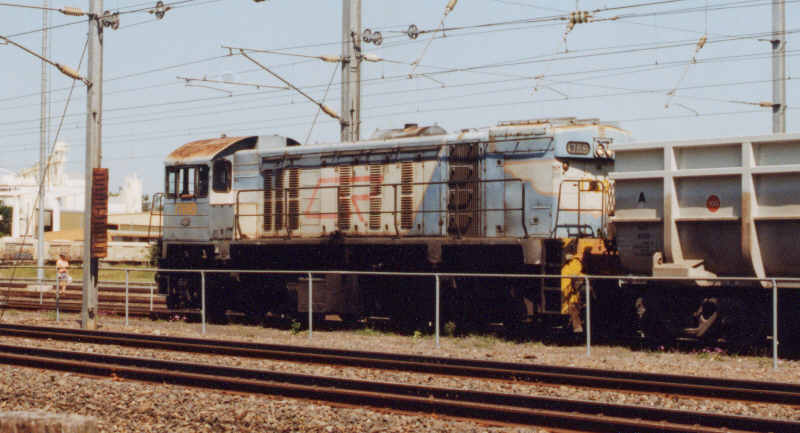

| 1768 | 69-685 | 1/1970 | |||
| 1769 | 69-686 | 2/1970 | |||
| 1770 | 69-687 | 2/1970 | |||
| 1771 | 70-688 | 3/1970 | |||
| 1772 | 70-689 | 3/1970 | |||
| 1773 | 70-690 | 4/1970 | |||
| 1774 | 70-691 | 4/1970 | |||
| 1775 | 70-692 | 5/1970 |
NAMED LOCOMOTIVES
| Locomotive | Given Name | Comments |
| 1770 | James Cook | 1770 was named to celebrate the bicentenary of Cook's visit to Australia. |
