TECHNICAL DATA
| Locomotive Numbers | 1600 - 1617 (1600 Class) |
| 1620 - 1653 (1620 Class) | |
| Type | Diesel-Electric |
| Introduced | 1962 (1600 Class) |
| 1967 (1620 Class) | |
| Number in class | 18; 0 in service (1600 Class) |
| 34; 0 in service (1620 Class) | |
| Manufacturer | English Electric |
| Gauge | Narrow Gauge (1,067mm or 3' 6") |
| Axles | O°-O°-O°
O°-O°-O° Co-Co |
| Length | 13.46m (1600 Class) |
| 13.84m (1620 Class) | |
| Mass | 62t (1600 Class) |
| 63t (1620 Class) | |
| Engine | EE 6CSRKT |
| Generator | EE 827 |
| Traction Motors | EE 540 |
| Power | 625 kW / 838 HP |
| Tractive Effort | 185 / 133 kN |
| Speed | 80 km/h (50mph) |
CLASS INFORMATION
| Locomotive | Serial No. | In Service | Withdrawn | Scrapped | Comments |

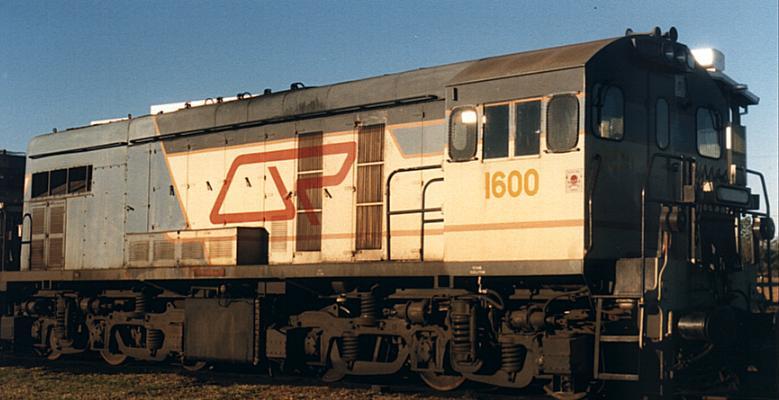

| 1600 | A-061 | 1/1963 | 3/1991 | 7/1993 | |
| 1601 | A-062 | 1/1963 | 4/1991 | 6/1993 | |
| 1602 | A-063 | 1/1963 | 4/1991 | 7/1993 | |
| 1603 | A-064 | 2/1963 | 4/1991 | Preserved | |
| 1604 | A-059 | 12/1962 | 3/1991 | Preserved | |
| 1605 | A-060 | 12/1962 | 2/1991 | 7/1993 | |
| 1606 | A-065 | 2/1963 | 1/1991 | 7/1993 | |
| 1607 | A-066 | 2/1963 | 2/1981 | 12/1983 | |
| 1608 | A-067 | 4/1963 | 1/1991 | 7/1993 | |
| 1609 | A-070 | 4/1963 | 3/1991 | 7/1993 | |
| 1610 | A-071 | 5/1963 | 12/1981 | 10/1983 | |
| 1611 | A-072 | 6/1963 | 2/1991 | 7/1993 | |
| 1612 | A-075 | 10/1963 | 6/1987 | 1/1990 | |
| 1613 | A-076 | 11/1963 | 4/1991 | Preserved | |
| 1614 | A-077 | 11/1963 | 4/1991 | Preserved | |
| 1615 | A-078 | 12/1963 | 4/1991 | ||
| 1616 | A-079 | 12/1963 | 4/1991 | Preserved | |
| 1617 | A-080 | 1/1964 | 12/1989 | 1/1992 | |

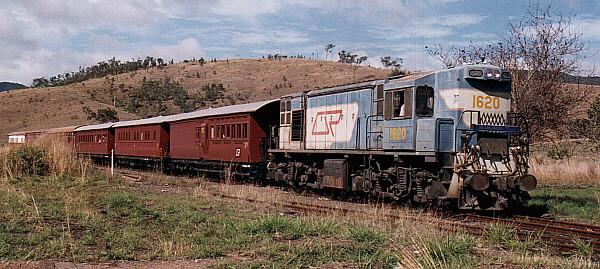

| 1620 | A-138 | 1/1967 | 5/1995 | Preserved | |
| 1621 | A-139 | 1/1967 | 2/1995 | To Philippines | |
| 1622 | A-140 | 1/1967 | 12/1992 | 12/1996 | |
| 1623 | A-141 | 1/1967 | 12/1992 | 12/1996 | |
| 1624 | A-143 | 2/1967 | 11/1982 | 6/1983 | |
| 1625 | A-147 | 2/1967 | 2/1995 | To Philippines | |
| 1626 | A-148 | 3/1967 | 3/1995 | 11/1996 | |
| 1627 | A-149 | 3/1967 | 1/1993 | 10/1996 | |
| 1628 | A-150 | 3/1967 | 1/1995 | 11/1996 | |

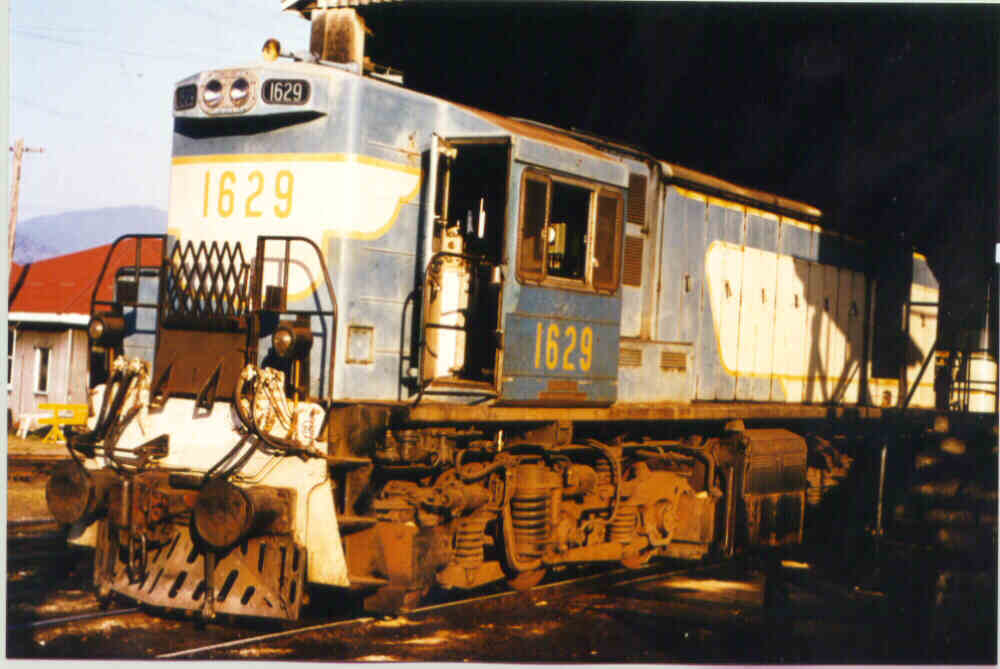

| 1629 | A-151 | 4/1967 | 3/1992 | 11/1996 | |
| 1630 | A-152 | 4/1967 | 1/1995 | 11/1996 | |
| 1631 | A-144 | 5/1967 | 6/1995 | To Philippines | |
| 1632 | A-153 | 7/1967 | 8/1995 | Preserved | |
| 1633 | A-154 | 7/1967 | 9/1992 | 12/1996 | |
| 1634 | A-155 | 8/1967 | 6/1993 | 11/1996 | |
| 1635 | A-156 | 9/1967 | 9/1995 | 10/1996 | |
| 1636 | A-157 | 9/1967 | 12/1994 | To Philippines | |
| 1637 | A-158 | 9/1967 | 1/1993 | 11/1996 | |
| 1638 | A-159 | 10/1967 | 3/1993 | 12/1996 | |
| 1639 | A-160 | 10/1967 | 4/1991 | Preserved | |
| 1640 | A-161 | 12/1967 | 12/1994 | 10/1996 | |
| 1641 | A-169 | 2/1968 | 9/1994 | 12/1996 | |
| 1642 | A-178 | 9/1968 | 3/1994 | 11/1996 | |
| 1643 | A-179 | 9/1968 | 4/1993 | 11/1996 | |
| 1644 | A-180 | 9/1968 | 8/1994 | To Philippines | |
| 1645 | A-182 | 10/1968 | 10/1994 | 11/1996 | |
| 1646 | A-184 | 11/1968 | 12/1995 | To Philippines | |
| 1647 | A-187 | 12/1968 | 10/1995 | ||
| 1648 | A-190 | 1/1969 | 12/1995 | To Philippines | |
| 1649 | A-191 | 2/1969 | 12/1995 | Preserved | |
| 1650 | A-193 | 3/1969 | 8/1994 | Preserved | |
| 1651 | A-194 | 3/1969 | 12/1995 | ||
| 1652 | A-196 | 4/1969 | 1/1994 | 10/1996 | |
| 1653 | A-199 | 5/1969 | 2/1993 | To Philippines |
PRESERVED LOCOMOTIVES
| Locomotive | Organisation |
| 1603 | QR Heritage Division |

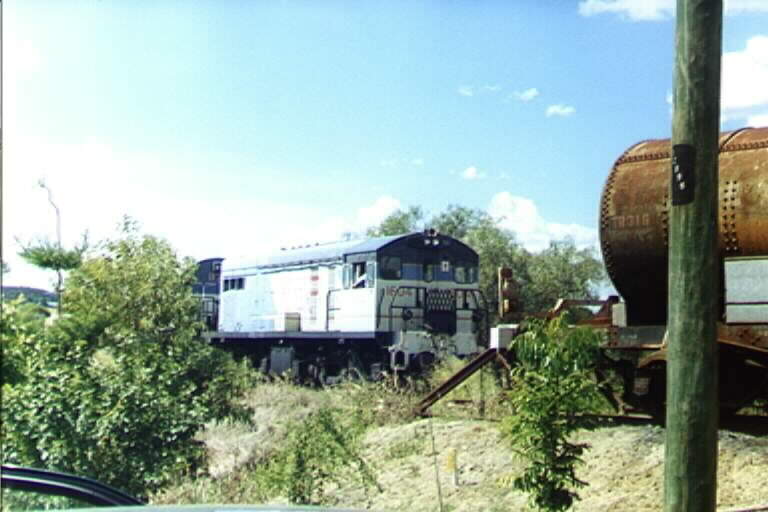

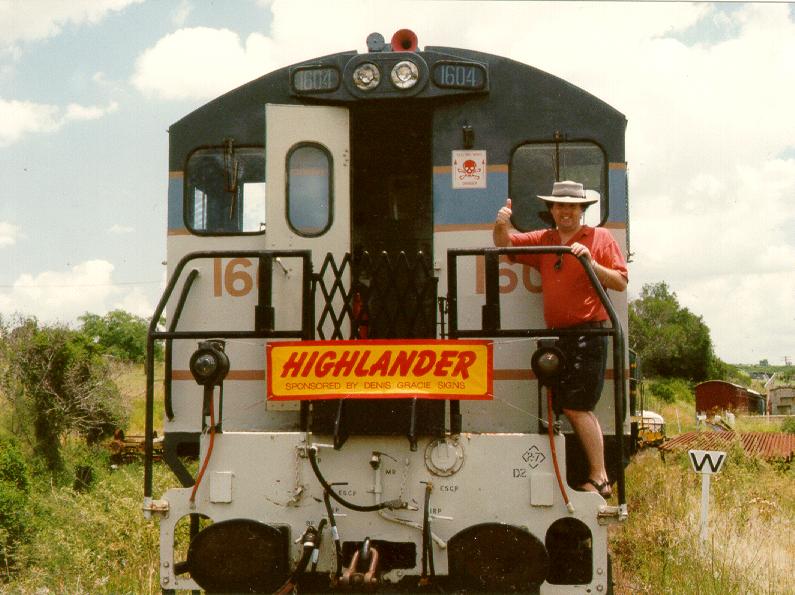

| 1604 | ARHS-Rosewood Railway Museum |
| 1613 | Longreach (static display) |
| 1614 | ARHS Qld Division |
| 1616 | Queensland Pioneer Steam, Swanbank |
| 1620 | QR Heritage Division |
| 1632 | Mary Valley Heritage Railway |
| 1639 | Mary Valley Heritage Railway |
| 1649 | Mary Valley Heritage Railway |
| 1650 | ARHS-Rosewood Railway Museum |
