1200 Class - Diesel Electric
<-BACK
The 1200 class initially saw use for wheat traffic, but later on spent most of their time on the main passenger trains. 1208 was rebuilt as 1225 in 1984-5, using parts from 1252 and 1253 class locos, and also being changed to the narrow body of the 1250 class. It was nicknamed "Hybrid" after this work.
TECHNICAL DATA
Locomotive Numbers 1200 - 1209 Type Diesel-Electric Introduced 1953 Number in class 10; 0 in service Manufacturer English Electric, UK Gauge Narrow Gauge (1,067mm or 3' 6") Axles O°-O°-O°   O°-O°-O° Co-Co Length 16.72m Mass 90t Engine EE 12SVT Generator EE 828 Traction Motors EE 525 Power 962 kW / 1290 HP Tractive Effort 222 / 133 kN Speed 80 km/h (50mph)
CLASS INFORMATION
Locomotive Serial No In Service Withdrawn Scrapped Comments 1200 1905-D146 7/1953 3/1977   Preserved 1201 1906-D146 7/1953 7/1978 3/1984   1202 1907-D148 11/1953 11/1971 1/1991   1203 1908-D149 12/1953 1/1980 6/1984   1204 1909-D150 12/1953 11/1981 1/1986   1205 1910-D151 1/1954 8/1978 4/1984   1206 1911-D152 2/1954 6/1983 8/1985   1207 1912-D153 3/1954 7/1979 8/1985   1208 1913-D154 3/1954 2/1988   Preserved, Rebuilt as 1225, 1/1985 1209 1914-D155 4/1954 1/1978 3/1986
PRESERVED LOCOMOTIVES

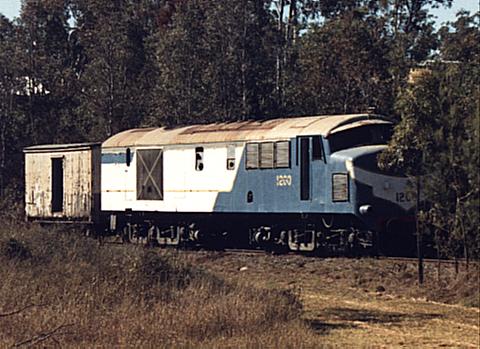

Locomotive Organisation 1200 ARHS Qld Division 1208 (1225, "Hybrid") ARHS Qld Division
