TECHNICAL DATA
| Locomotive Numbers | DH1 - 73 |
| Type | Diesel-Hydraulic |
| Introduced | 1966 |
| Number in class | 73; 4 in service |
| Manufacturer | Walkers |
| Gauge | Narrow Gauge (1,067mm or 3' 6") |
| Axles | O-°-O
O-°-O B-B |
| Length | 11.1m |
| Mass | 37t |
| Engine | Caterpillar D355E |
| Transmission | Voith L42U2 |
| Power | 347 kW / 465 HP |
| Tractive Effort | 114 / 82 kN |
| Speed | 50 km/h (31.2mph) |
CLASS INFORMATION
| Locomotive | Serial No. | In Service | Withdrawn | Scrapped | Comments |
| DH1 | 581 | 12/1966 | 10/1989 | 1/1990 | |
| DH2 | 584 | 7/1968 | 4/1991 | Preserved | |
| DH3 | 585 | 8/1968 | 12/1989 | 1/1992 | |

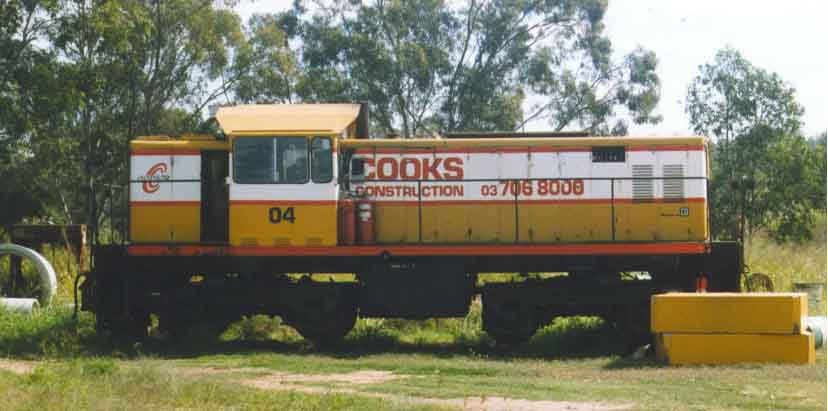

| DH4 | 586 | 8/1968 | 11/1992 | To SECV as CC1 | |
| DH5 | 587 | 8/1968 | 7/1992 | To SECV as CC2 | |
| DH6 | 588 | 9/1968 | 1/1994 | To Vietnam | |
| DH7 | 589 | 9/1968 | 12/1989 | To MIM | |
| DH8 | 590 | 9/1968 | 6/1994 | To Vietnam | |

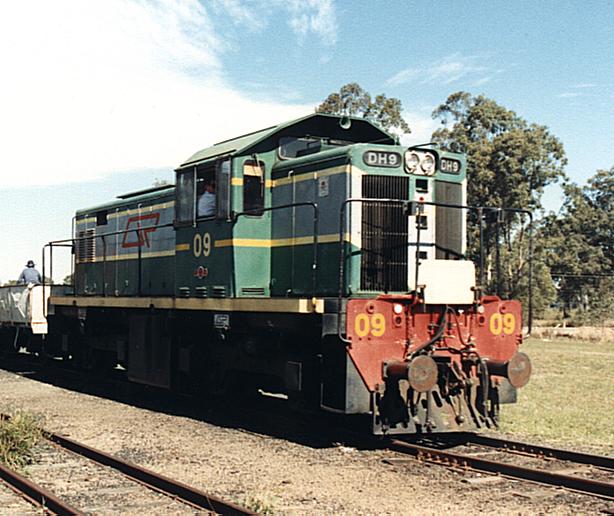

| DH9 | 591 | 10/1968 | 6/1991 | To Vietnam | |
| DH10 | 592 | 10/1968 | 3/1991 | To Pioneer Mill | |
| DH11 | 593 | 10/1968 | 11/1992 | To CSR Invicta Mill | |
| DH12 | 594 | 11/1968 | 12/1991 | To CSR Plane Creek Mill as 1 | |
| DH13 | 595 | 11/1968 | 4/1991 | To Mulgrave Mill | |
| DH14 | 596 | 11/1968 | 3/1993 | Preserved | |
| DH15 | 597 | 11/1968 | 11/1992 | To Vietnam | |
| DH16 | 598 | 12/1968 | 4/1991 | To Isis Central Mill | |
| DH17 | 599 | 12/1968 | 11/1993 | To CSR Victoria Mill | |
| DH18 | 600 | 12/1968 | 6/1990 | To Isis Central Mill | |
| DH19 | 601 | 12/1968 | 8/1991 | To Kalamia Mill | |
| DH20 | 602 | 2/1969 | 6/1990 | To Isis Central Mill | |
| DH21 | 603 | 2/1969 | 3/1988 | 12/1989 | |
| DH22 | 604 | 2/1969 | 3/1991 | To Pioneer Mill for spares | |
| DH23 | 605 | 2/1969 | 12/1989 | To CSR Victoria Mill | |
| DH24 | 606 | 2/1969 | 4/1994 | To SECV as CC5 | |
| DH25 | 607 | 3/1969 | 6/1993 | To Racecourse Mill | |
| DH26 | 608 | 3/1969 | 6/1991 | To Vietnam | |
| DH27 | 609 | 3/1969 | 5/1990 | 1/1992 | |
| DH28 | 610 | 4/1969 | 4/1991 | To SECV as CC4 | |
| DH29 | 611 | 4/1969 | 2/1991 | To Kalamia/Inkerman Mill | |
| DH30 | 612 | 4/1969 | 4/1991 | To CSR Victoria Mill | |
| DH31 | 613 | 5/1969 | 4/1991 | To Mulgrave Mill | |
| DH32 | 614 | 5/1969 | 12/1992 | To Relk Corp., Malaysia | |
| DH33 | 615 | 5/1969 | 11/1991 | To Vietnam | |
| DH34 | 616 | 5/1969 | 6/1988 | 12/1989 | |
| DH35 | 617 | 6/1969 | 2/1991 | To Sugar Research, Mackay | |
| DH36 | 618 | 6/1969 | 4/1991 | To SECV as CC6 | |
| DH37 | 619 | 6/1969 | QRX Terminal, Cairns | ||
| DH38 | 620 | 7/1969 | 6/1994 | Preserved | |
| DH39 | 621 | 7/1969 | 6/1994 | To Vietnam | |
| DH40 | 622 | 7/1969 | 4/1991 | To Tully Mill | |
| DH41 | 623 | 8/1969 | 4/1992 | To Fairymead Mill | |
| DH42 | 624 | 8/1969 | 11/1992 | To Vietnam | |
| DH43 | 625 | 8/1969 | 5/1991 | To Kalamia/Inkerman Mill | |
| DH44 | 626 | 8/1969 | 2/1994 | To Vietnam | |
| DH45 | 627 | 9/1969 | QRX Terminal, Cairns | ||
| DH46 | 628 | 9/1969 | 3/1994 | To Proserpine Mill | |
| DH47 | 629 | 10/1969 | 3/1991 | To Mulgrave Mill | |
| DH48 | 630 | 10/1969 | 4/1991 | To CSR Plane Creek Mill as 2 | |
| DH49 | 631 | 10/1969 | 5/1990 | 1/1992 | |
| DH50 | 632 | 11/1969 | 4/1991 | To Kalamia Mill | |
| DH51 | 633 | 11/1969 | 5/1991 | To Fairymead Mill | |
| DH52 | 634 | 11/1969 | 2/1990 | 1/1992 | |
| DH53 | 635 | 12/1969 | 5/1990 | 1/1992 | |
| DH54 | 636 | 12/1969 | 7/1993 | To Vietnam | |
| DH55 | 637 | 1/1970 | 4/1991 | To Relk Corp., Malaysia | |
| DH56 | 643 | 4/1970 | 11/1991 | To SECV as CC3 | |
| DH57 | 644 | 4/1970 | 12/1991 | To Vietnam | |
| DH58 | 645 | 5/1970 | 1/1994 | To Vietnam | |
| DH59 | 646 | 5/1970 | 5/1991 | Preserved | |
| DH60 | 647 | 5/1970 | 4/1991 | To Pioneer Mill | |
| DH61 | 648 | 6/1970 | 12/1989 | 1/1992 | |
| DH62 | 649 | 6/1970 | 3/1990 | 1/1992 | |
| DH63 | 650 | 6/1970 | 4/1991 | To Tully Mill | |
| DH64 | 651 | 7/1970 | 7/1991 | To CSR Plane Creek Mill as 3 | |
| DH65 | 652 | 7/1970 | 11/1992 | To Vietnam | |
| DH66 | 653 | 7/1970 | 7/1991 | To Tully Mill as 6 | |
| DH67 | 654 | 7/1970 | 4/1990 | To Isis Central Mill as spares | |
| DH68 | 655 | 8/1970 | 4/1991 | To CSR Invicta Mill | |
| DH69 | 656 | 8/1970 | 7/1992 | To Isis Central Mill | |
| DH70 | 657 | 8/1970 | 5/1991 | To Racecourse Mill | |
| DH71 | 716 | 12/1973 | 1/1992 | ||
| DH72 | 717 | 1/1974 | |||
| DH73 | 718 | 2/1974 |
PRESERVED LOCOMOTIVES
| Locomotive | Organisation |
| DH2 | QR Heritage Division |
| DH14 | Ghan Preservation Society |
| DH38 | ARHS-Roswood Railway Museum |
| DH59 | Puffing Billy Railway |
